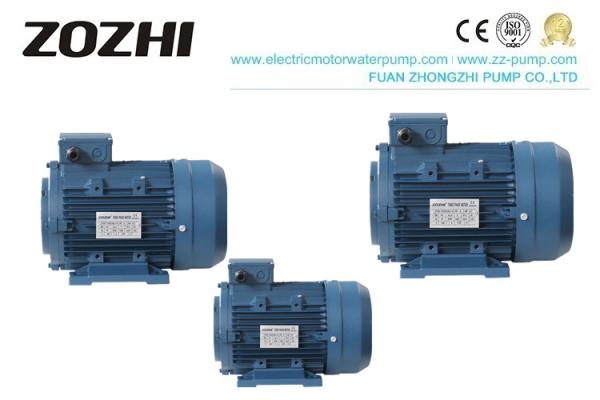

Oil Pump Aluminum 60HZ Hollow Shaft Hydraulic Motor

Brand Name : ZOZHI

Model Number : hydraulic motor

Certification : ISO

Place of Origin : China

MOQ : 10PCS

Price : negotiated

Payment Terms : T/T, L/C

Supply Ability : 10000pcs/month

Delivery Time : 25 working days after received your payment

Packaging Details : Packed in cartons,veneer case or wooden case.

Output : 0.5kw 1.5kw 2.2kw 4kw 5.5kw 7.5kw

Application : hydraulic system

Voltage/Frequency : 220V 230/380V 60HZ

Motor Bearing : C&U (SKF for Choice)

Efficiency : IE1 IE2 IE3

Motor Housing : Aluminum

Protection class : IP54/IP55

Name : three phase asynchronous motor

Product Name : Hollow Shaft Motor

Contact Now

Oil Pump Aluminum 60HZ Hollow Shaft Hydraulic Motor

Hollow Shaft Motor

Description

Product series: Hydraulic Motor

Insulation class: Class F
Low vibration ~ precision machining and dynamic balance, vibration level reaches NEMA MG1 1998 Part 7, IEC34-14 level N or higher, low vibration.
The design of this three-phase motor conforms to the internationally important performance and quality control standards. It is a low-noise, long-life motor with economic and practical value in industry and commerce.
The product size and characteristics are based on the requirements of IEC, JIS, CNC, NEMA, and other specifications, with low vibration and low noise.
Class F insulation, Class B temperature rise, use factor above 1.0, the low-temperature rise at full load, long insulation life.

Oil Pump Aluminum 60HZ Hollow Shaft Hydraulic Motor

Oil Pump Aluminum 60HZ Hollow Shaft Hydraulic Motor

Application

Direct-connected with a vane pump for hydraulic System

Oil Pump Aluminum 60HZ Hollow Shaft Hydraulic Motor

Note

1. Be sure to correct concentricity during installation; allow 0.1mm deviation


2. Be sure to confirm the matching size of the oil pump and motor before purchasing. Please consult for more details


3. If you don't know what oil pump to match, please measure the "shaft size," "flange inner diameter," and "hole distance" of your motor? We will find a suitable motor for you based on the size

Oil Pump Aluminum 60HZ Hollow Shaft Hydraulic Motor

Oil Pump Aluminum 60HZ Hollow Shaft Hydraulic Motor

Oil Pump Aluminum 60HZ Hollow Shaft Hydraulic Motor

Oil Pump Aluminum 60HZ Hollow Shaft Hydraulic Motor

Data

Model Rated Output Rated Current Rated Speed Eff Power Factor Starting Current Ts/tn Tmax/Tn Axis Bore Axis Key height Bore Depth Front Cover Oil Pump Fixed Position Oil Pump Model
HP KW A r/min % cosΦ times times Φx键宽 C E halt止口Φ Screw Hole Distance Model
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6.0 2.3 2.3 12.7x3.2 14.35 35 82.55 106.3 M10 VP20,VP12,VP12/20
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6.0 2.3 2.3 10.15x7齿 Φ13.65 35 82.55 106.3 M10 VP20,7齿花键 tooth key
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6.0 2.3 2.3 12.4x9齿 Φ16.35 35 82.55 106.3 M10 VP20,9齿花键 tooth key
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6.0 2.3 2.3 12x4 13.7 28 50.8 82.55M8 HGP-1A
Y2HS802-4 1 0.75 2 1390 74.5 0.76 6.0 2.3 2.3 15.875x4 17.7 32 82.55 106.3 M10 HGP-3A
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 12.5x4 14 35 50.8 63.5x63.5 M8 GPY,HGP-2A
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 12x4 13.7 28 50.8 82.55 M8 HGP-1A
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 12.7x3.2 14.35 35 82.55 106.3 M10 VP20, VP12/15
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 10.15x7齿 Φ13.65 35 82.55 106.3 M10 VP20,7齿花键 tooth key
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 12.4x9齿 Φ16.35 35 82.55 106.3 M10 VP20,9齿花键 tooth key
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 16x5 18 37 38 70x100 MB CBN CBT
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 19.05x4.76 21.25 36 95.02 90x90 M10 VP30, VP40
Y2HS90L-4 2 1.5 3.7 1400 79 0.79 6.5 2.3 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 12.5x4 14 35 50.8 63.5x63.5 M8 GPY HGP-2A
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 19.05x4.76 21.25 38 82.55 106 M10 PV2R1
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 19.05x4.76 21.25 36 95.02 90X90 M10 VP30, VP40
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 16X5 18 37 38 70X100 MB CBN CBT
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 12.7x3.2 14.35 35 82.55 106.3 M10 VP20, VP12/15
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 18x6 18 37 38.00 70X100 MB CBN CBT
Y2HS100L-4 3 2.2 5 1430 81 0.82 7.0 2.2 2.3 19.05x4.76 21.25 38 82.55 106 M10 PV2R1
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 12.5x4 14 35 50.8 63.5x63.5 M8 GPY HGP-2A
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 16x5 18 37 38.00 70x100 MB CBN CBT
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 19.05x4.76 21.25 38 82.55 106 M10 PV2R1, FA1
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 19.05x4.76 21.25 36 95.02 90x90 M10 VP-30 VP-40
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 22x5 24 50 96 90x90 M10 50T
Y2HS112M-4 5.5 4 8.8 1440 84.5 0.82 7.0 2.2 2.3 11.4x4 Φ15-4齿 37 38.00 70x100 MB CBN 4齿花键
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 22x5 24 50 96 90x90 M10 50T-F
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 16x5 18 37 38.00 70x100 MB CBN CBT
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 12.5x4 14 35 50.8 63.5x63.5 M8 GPY HGP-2A
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 19.05x4.76 21.25 38 82.55 106 M10 PV2R1, FA1
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 25.4x6.35 28.2 50 101.6 Φ146 M12 T6B PV2R2
Y2HS132S-4 7.5 5.5 11.8 1440 85.5 0.84 7.0 2.2 2.3 30x8(7) 33 48 160 Φ187 M12 150T
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 15.875x4 17.7 34 82.55 106.3 M10 HGP-3A
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 19.05x4.76 21.5 38 82.55 106 M10 PV2R1 FA
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 22.23x6.35 25.08 35 101.6 146 M12 T6C
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 25.4x6.35 28.2 50 101.6 146 M12 T6B PV2R2
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 30x8(7) 33 48 160 Φ187 M12 150T
Y2HS132M-4 10 7.5 15.6 1440 87 0.85 7.0 2.2 2.3 22.23x4.76 24.5 52 101.6 146 M12 S25V(S20V)25VQ
